DevExpress DataGrid Master-Detail Scripts (Examples #3)

1. DevExpress DataGrid Master-Detail Mode #3

- 스크립트(Script)를 통한 DataGrid Master-Detail 만들기입니다.



(1) 소스

using System;
using System.Collections;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;

namespace DXDataGridMasterDetailApp {
    public partial class Form1 : DevExpress.XtraEditors.XtraForm {
        public Form1() {
            InitializeComponent();
            gridControl1.DataSource = SampleData.GetData();

            gridView1.MasterRowGetRelationCount += (s, e) => {
                e.RelationCount = 1;
            };

            gridView1.MasterRowEmpty += (s, e) => {
                e.IsEmpty = false;
            };

            gridView1.MasterRowGetChildList += (s, e) => {
                e.ChildList = SampleData.GetData();
            };

            gridView1.MasterRowGetRelationName += (s, e) => {
                e.RelationName = "Test Relation Name";
            };
        }
    }
    public class SampleData {
        [Display(Order = -1)]
        public int ID { get; set; }
        public string Name { get; set; }
        public double Length { get; set; }
        public bool Mark { get; set; }
        public DateTime RecordDate { get; set; }
        public static List<SampleData> GetData() {
            return new List<SampleData>() {
                new SampleData(){ ID = 0, Name = "Bluehead Wrasse", Length = 15.09, Mark = false, RecordDate = DateTime.Now },
                new SampleData(){ ID = 1, Name = "Ornate ButterflyFish", Length = 15.09, Mark = true, RecordDate = DateTime.Now },
                new SampleData(){ ID = 2, Name = "Senorita", Length = 15.09, Mark = true, RecordDate = DateTime.Now },
                new SampleData(){ ID = 3, Name = "Surf Smelt", Length = 15.09, Mark = false, RecordDate = DateTime.Now },
            };
        }
    }
}

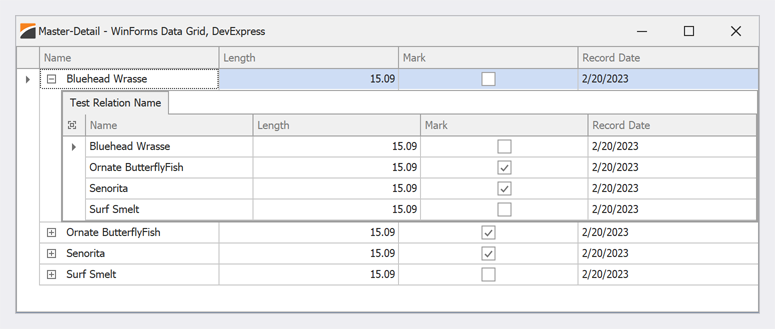

(2) 결과화면
