DevExpress DataGrid Master-Detail Scripts (Examples #1)

1. DevExpress DataGrid Master-Detail Mode

- 스크립트(Script)를 통한 DataGrid Master-Detail 만들기입니다.

- DB를 접속해서 자료를 읽어와 자료를 조회하는 방식중 Master-Detail 적용입니다.



(1) 소스

using System.Data;
using System.Data.OleDb;
using DevExpress.Utils;
using DevExpress.XtraEditors.Repository;
using DevExpress.XtraGrid.Views.Card;

namespace DXDataGridMasterDetailApp {
    public partial class Form1 : DevExpress.XtraEditors.XtraForm {
        public Form1() {
            InitializeComponent();
            // Creates a connection to the Nwind database.
            OleDbConnection connection = new OleDbConnection(
                "Provider=Microsoft.Jet.OLEDB.4.0;Data Source = C:\\Users\\Public\\Documents\\DevExpress Demos 22.2\\Components\\Data\\nwind.mdb");

            // --------------------- (1)
            // Creates the data adapters to retrieve data from the Categories and Products data tables.
            OleDbDataAdapter adapterCategories = new OleDbDataAdapter(
                "SELECT CategoryID, CategoryName, Picture FROM Categories", connection);
            OleDbDataAdapter adapterProducts = new OleDbDataAdapter(
                "SELECT CategoryID, ProductID, ProductName, UnitPrice FROM Products", connection);

            // --------------------- (2)
            DataSet dataSetNwind = new DataSet();
            // Creates DataTable objects that correspond to database tables.
            adapterCategories.Fill(dataSetNwind, "Categories");
            adapterProducts.Fill(dataSetNwind, "Products");

            // --------------------- (3)
            // Sets up a master-detail relationship between data tables.
            DataColumn keyColumn = dataSetNwind.Tables["Categories"].Columns["CategoryID"];
            DataColumn foreignKeyColumn = dataSetNwind.Tables["Products"].Columns["CategoryID"];
            dataSetNwind.Relations.Add("CategoriesProducts", keyColumn, foreignKeyColumn);

            // --------------------- (4)
            // Binds the Data Grid to a data source.
            gridControl1.DataSource = dataSetNwind.Tables["Categories"];
            // Forces the Data Grid to initialize its settings.
            gridControl1.ForceInitialize();

            // --------------------- (5)
            // Creates a pattern view (CardView) to display detail data.
            CardView cardViewProducts = new CardView(gridControl1);
            gridControl1.LevelTree.Nodes.Add("CategoriesProducts", cardViewProducts);
            // Specifies the detail view's caption (the caption of detail tabs).
            cardViewProducts.ViewCaption = "Category Products";

            // --------------------- (6)
            // Hides the CategoryID column from the master view.
            gridView1.Columns["CategoryID"].VisibleIndex = -1;

            // --------------------- (7)
            /* Creates a Picture Edit repository item to display images in the Picture column,
            * adds it to the Data Grid's RepositoryItems collection, and sets up image settings. */
            RepositoryItemPictureEdit riPictureEdit = gridControl1.RepositoryItems.Add("PictureEdit") as RepositoryItemPictureEdit;
            gridView1.Columns["Picture"].ColumnEdit = riPictureEdit;
            riPictureEdit.SizeMode = DevExpress.XtraEditors.Controls.PictureSizeMode.Stretch;
            // Specifies the width of the Picture column.
            gridView1.Columns["Picture"].Width = 250;
            gridView1.Columns["Picture"].OptionsColumn.FixedWidth = true;

            // --------------------- (8)
            // Enables automatic height for master rows.
            gridView1.OptionsView.RowAutoHeight = true;

            // --------------------- (9)
            // Creates columns in a detail pattern view (CardView) for all fields in the Products table.
            cardViewProducts.PopulateColumns(dataSetNwind.Tables["Products"]);
            // Hides the CategoryID column.
            cardViewProducts.Columns["CategoryID"].VisibleIndex = -1;
            // Formats cell values in the UnitPrice column as currency.
            cardViewProducts.Columns["UnitPrice"].DisplayFormat.FormatType = FormatType.Numeric;
            cardViewProducts.Columns["UnitPrice"].DisplayFormat.FormatString = "c2";
        }
    }
}

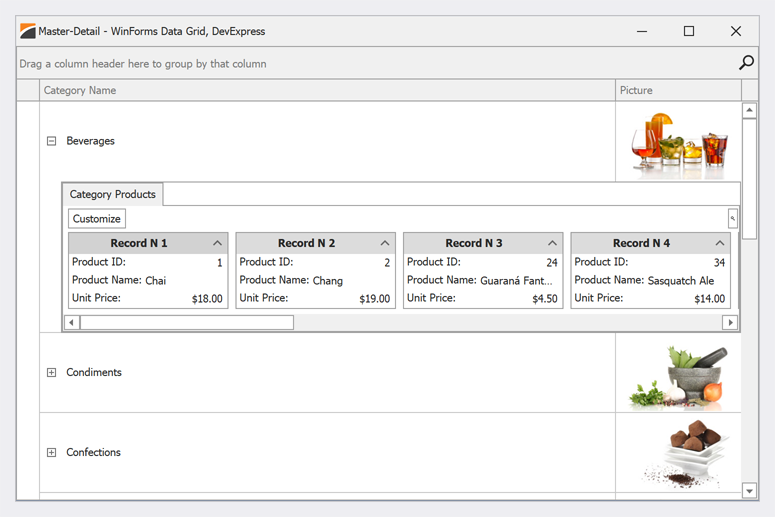

(2) 결과화면



2. 프로그램 설명

(1) DB 자료 Select

  >> DataTable를 사용하여 Select를 할때

    DataTable retData1 = sqlHelper("SELECT CategoryID, CategoryName, Picture FROM Categories");

    DataTable retData2 = sqlHelper( "SELECT CategoryID, ProductID, ProductName, UnitPrice FROM Products" );

    retData1.Name = "Categories" ;

    retData2.Name = "Products" ;



(2) DataSet 테이블 자료등록 및 연결

  >> DataSet를 DatatTable 변경시

    DataSet dataSetNwind = new DataSet();

    dataSetNwind.Add(retData1);

    dataSetNwind.Add(retData2);



(3) DataSet 테이블 마스터와 디테일의 연결키 매칭작업 및 선언



(4) DataContral DataSource DB DataSet 연결



(5) DataGrid Detail 처리

  - 카드형 : CardView



(6) GridView 첫번째 컬럽 않보이게 처리

  - 그리드형 : GridView

  - 예)

    gridView1.Columns["CategoryID"].Visible = false;



(7) 그리드뷰에 Image 적용



(8) Row 높이 자동처리



(9) Detail 출력 양식 변경 및 편집
